Speeds
1 x 11
Weight
10.2 kg (22.5 lb)
Gear Inches
24" - 102" (1.94 - 8.17 m)

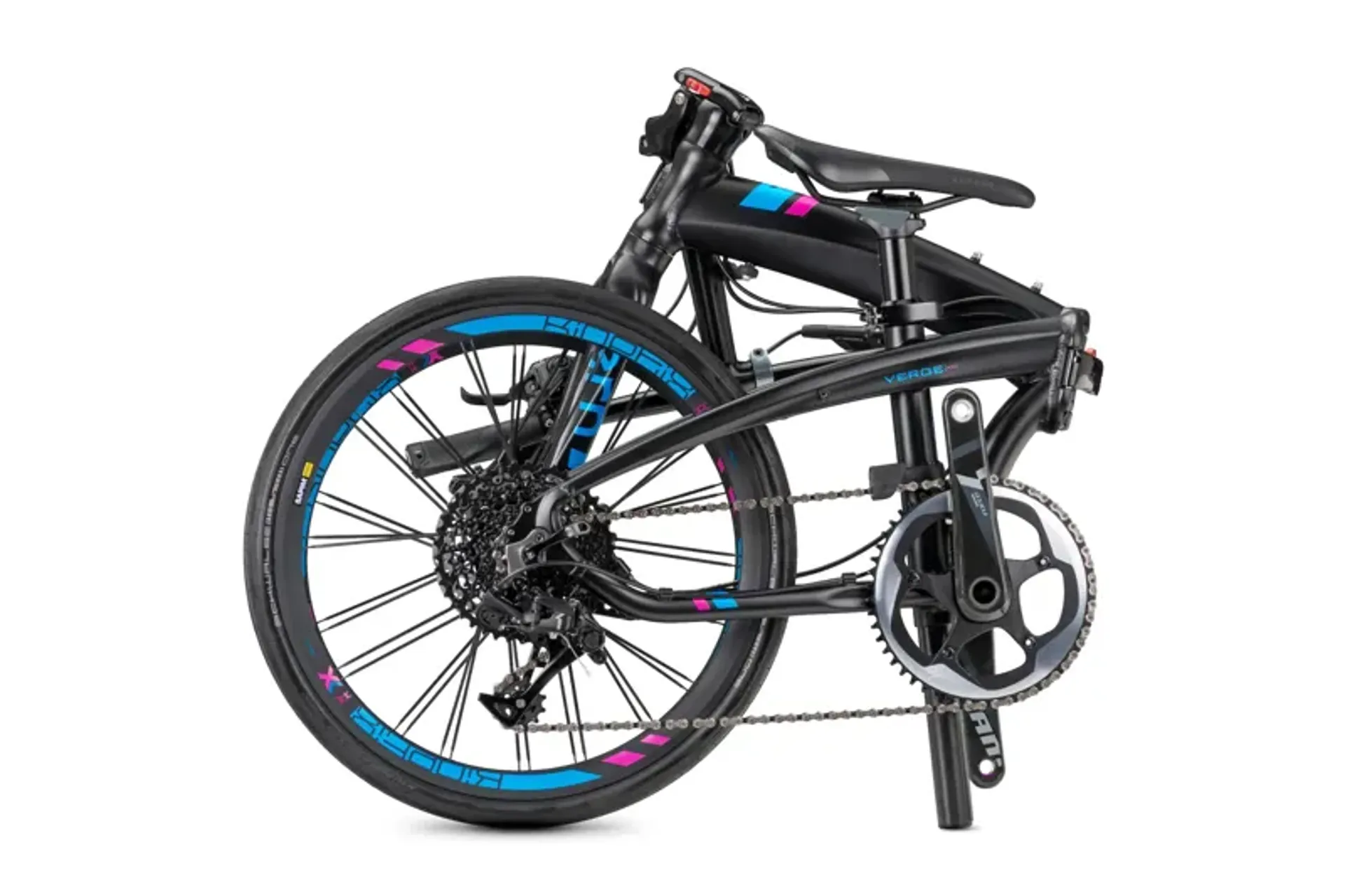

Folding Size
38 × 80 × 74 cm (15 × 31.5 × 29.1 in)
Folding Time
10 seconds
Frame Sizes
One size
Distance: Seatpost to Handlebar
61 - 66 cm (24 - 26 in)
Distance: Saddle to Pedal
66 - 93 cm (26 - 36.6 in)
Suggested Rider Height
142 - 190 cm (55.9 - 74.8 in)
Max Gross Vehicle Weight
120 kg (264.6 lb)
Max Rider Weight
105 kg (231.5 lb)
Frame
Tern Verge, hydroformed aluminum w/ smooth TIG welding, OCL+ joint, 3 patented technologies
Fork
Tern Tarsus, 6061-AL, hydroformed
Handlepost
Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 290 mm
Stem
Syntace VRO, adjustable, Built for Tern
Headset
Flux Pro, angular contact bearings, Physis integrated
Handlebar
Kinetix Pro X, double-butted 7050-AL, for VRO
Grips/Bar Tape
Ergon GS1 Leichtbau
Saddle
Ergon SMC10 Sport Gel
Seatpost
Stasis by Syntace, 7050-AL, hard-anodized
Seatpost Clamp
Syntace OverLock
Front Brake
Shimano Deore, hydraulic disk
Rear Brake
Shimano Deore, hydraulic disk
Brake Levers
Shimano Deore, hydraulic disk
Brake Cable & Housing
Shimano, hydraulic
Front Wheel
Kinetix Pro X Disk, Paired Spoke technology, straight-pull design, 20H, 600 g
Rear Wheel
Kinetix Pro X Disk, Paired Spoke technology, SRAM XD Driver, straight-pull design, 20H, asymmetric flange, 720 g
Tires
Schwalbe One, 28-451, ADDIX compound, 115 psi
Shifter(s)
SRAM GX trigger, 1 x 11 spd
Rear Derailleur
SRAM X1
Crankset
SRAM Force® 1 carbon, X-SYNC chainring, 52T
Cassette/Freewheel
SRAM XG-1150, 10-42T, 11 spd
Bottom Bracket
SRAM GXP
Chain
KMC X11
Shifter Cable & Housing
Jagwire LEX-SL, slick treatment, alloy ferrules
Bell
Pitch, brass
Clip System
Magnetix 2.0
Luggage Socket
Yes
Rear Light
Biologic TailLight
