Speeds
1 x 7
Weight
14.4 kg (31.7 lb)
Gear Inches
33" - 80" (2.62 - 6.41 m)

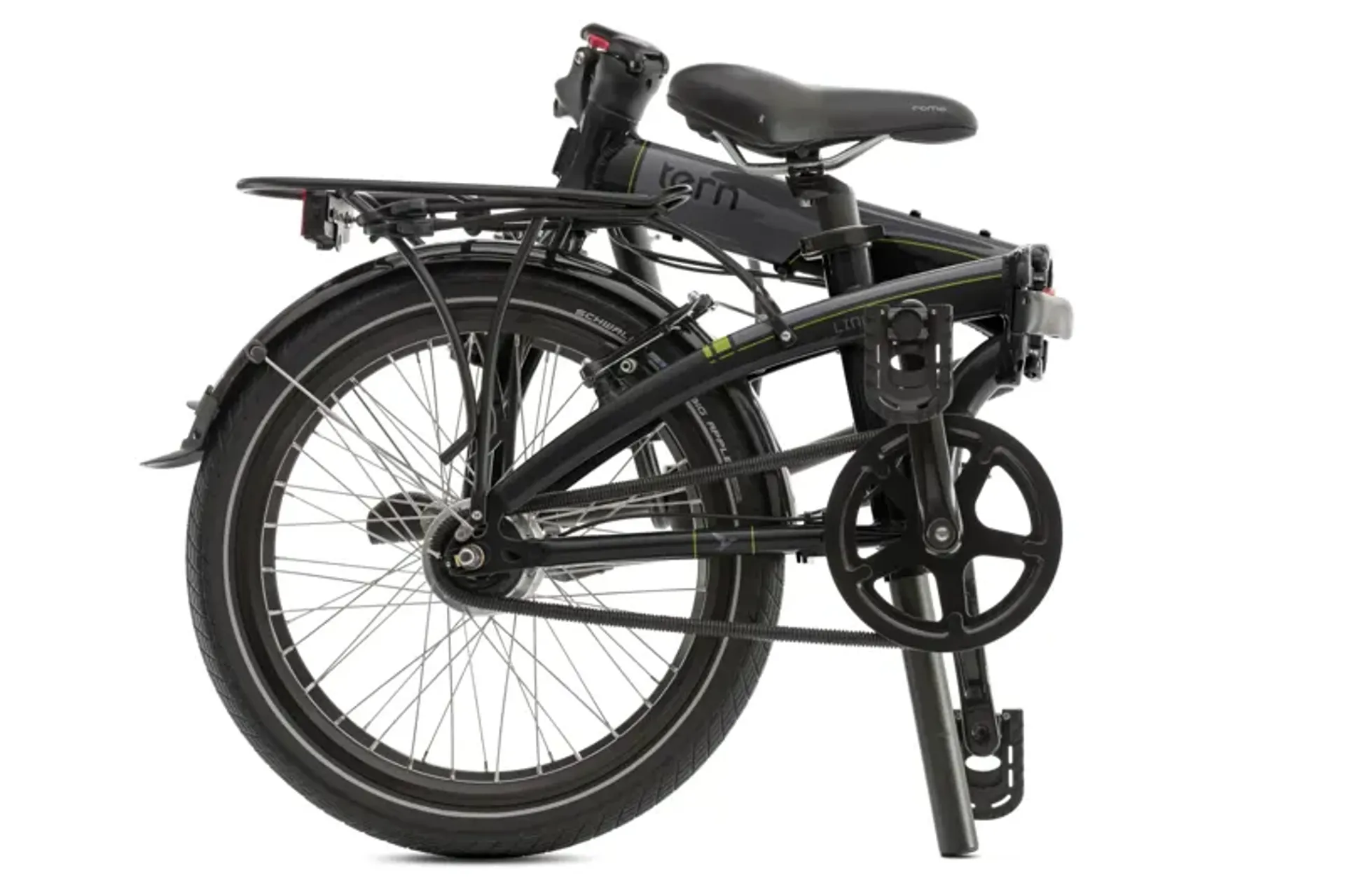

Folding Size
380 × 790 × 720 mm (15 × 31.1 × 28.3 in)
Folding Time
10 sec
Frame Sizes
One size
Distance: Seatpost to Handlebar
62 - 69 cm (24.4 - 27.2 in)
Distance: Saddle to Pedal
70 - 96 cm (27.6 - 37.8 in)
Suggested Rider Height
142 - 190 cm (55.9 - 74.8 in)
Max Gross Vehicle Weight
120 kg (264.6 lb)
Max Load Weight
105 kg (231.5 lb)
Max Rider Weight
105 kg (231.5 lb)
Frame
Tern Link, aluminum, OCL Joint, 3 patented technologies
Fork
Integrated, hi-tensile steel
Handlepost
Tern Physis 3D, 3D forged, 5 patented technologies
Stem
Tern Andros, adjustable, forged construction, patented technology
Headset
Flux, cartridge bearings, Physis integrated
Handlebar
Flat bar, 6061-Al, Andros butted
Grips/Bar Tape
Velo ergonomic, lock-on
Saddle
BioLogic Como DLX
Seatpost
SuperOversize, 6061-Al, micro-adjust clamp
Seatpost Clamp
SuperOversize, 6061-Al
Front Brake
V, aluminum, linear spring
Rear Brake
V, aluminum, linear spring
Brake Levers
V, aluminum bracket/lever
Brake Cable & Housing
Anti-compression housing, slick cables
Front Hub
Mini, aluminum Opt: Panasonic dynamo
Rear Hub
Shimano Nexus 7 freewheel
Spokes & Nipples
Sapim Leader, stainless steel
Rims
Doublewall aluminum
Tires
Schwalbe Big Apple, 50-406, puncture protection, Reflex
Shifter(s)
Shimano Nexus 7 spd
Crankset
Forged 6061 aluminum crank arms, hand-polished
Cassette/Freewheel
17T
Bottom Bracket
Cartridge, sealed bearings
Chain
408H
Pedals
Folding, alloy body
Shifter Cable & Housing
Shimano
Bell
Aluminum
Chainguard
BioLogic FreeDrive
Kickstand
Deluxe center mount
Clip System
Magnetix 2.0
Luggage Socket
Yes
Front Light
Tern Valo 2, integrated, 41 lux/150 lumens
Rear Light
Deluxe LED
Fenders
RP Chromeplastic, stainless hardware
Rack(s)
Tern Loader Rack
