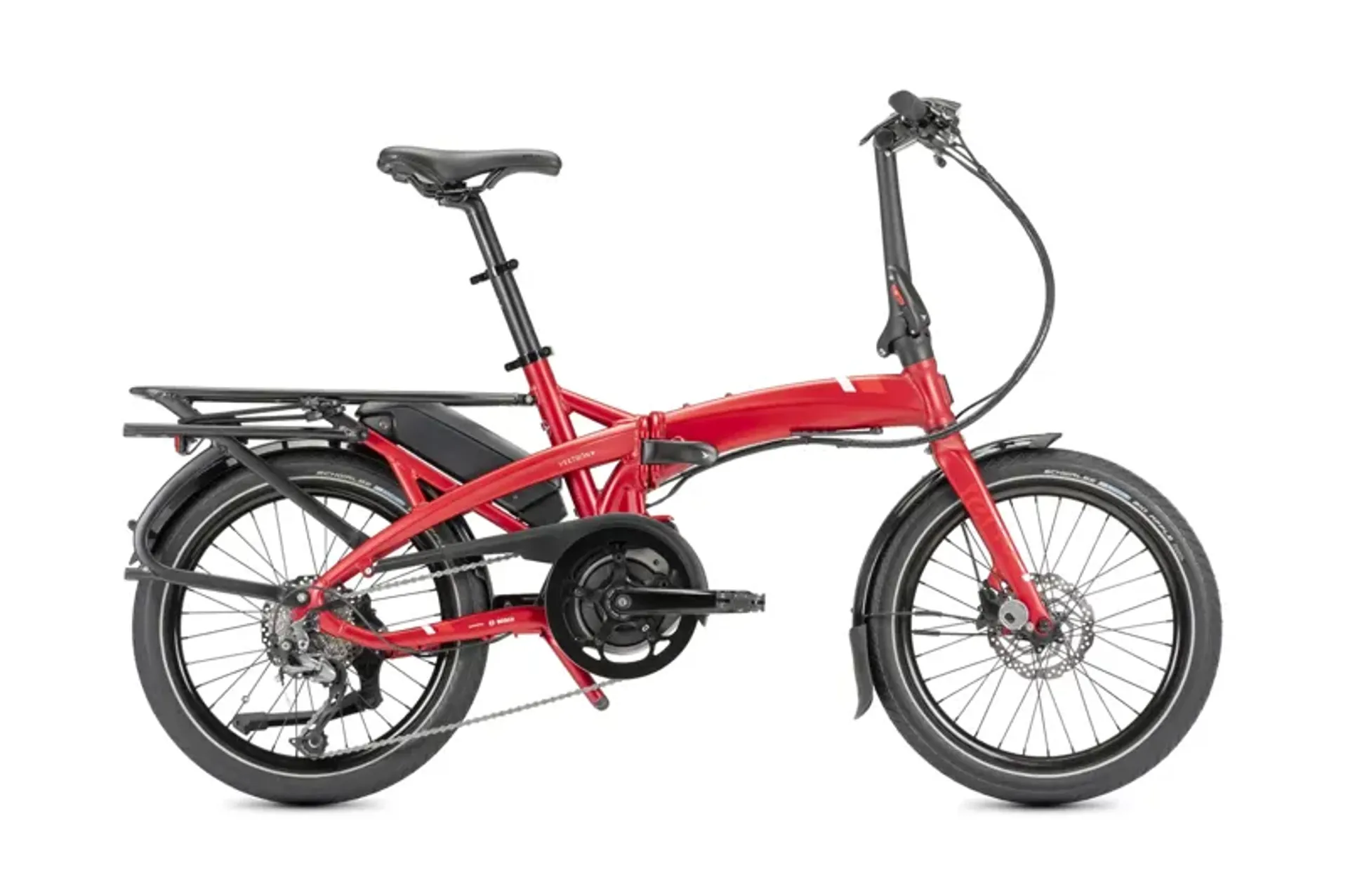

Tern Vektron Q9 E-Folding Bike In Satin Red

Experience enhanced performance with new colors and updated styling.

Tern

Tern Vektron Q9 E-Folding Bike In Satin Red

$2,999.00

Size Guide

Earn

in Customer Rewards when you buy this item today

Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Shipping & Collection Dates

Estimated Shipping & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Shipping & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Earn Rewards

When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Our customers love us

Don't take our word for it. Check out some of the great reviews our customers have left us & if you've had a great experience with us, why not let us—and our customers—know about it.

Tern Vektron Q9 E-Folding Bike In Satin Red

Brand:Tern

Code:12-9-12

Experience enhanced performance with new colors and updated styling.

The upgraded Bosch Active Line Plus electric drivetrain offers 270% more assistance and 50 Nm of torque, ensuring a powerful ride. The updated frame features a reclining battery for a lower center of gravity, providing a better ride experience. This frame has passed strict European safety standards for pedal-assist e-bikes, certified as EN15194-compliant by EFBE Prüftechnik.

The integrated Atlas V Rack™ works seamlessly with Thule Yepp Maxi and Dash® RM child seats, requiring no adapters. Additionally, the bike resizes in seconds to fit riders from 147 – 195 cm (4’10” – 6’5”), making it perfect for family use.

Features:

Bosch Active Line Plus electric drivetrain with 270% more assistance.
Hydraulic disk brakes for all-weather stopping power.
Reclining battery for a lower center of gravity.
EN15194-compliant frame certified by EFBE Prüftechnik.
Integrated Atlas V Rack™ compatible with child seats.
Adjustable sizing for riders 147 – 195 cm.

Technical Information

Speeds
1 x 9
Weight
21.9 kg (48.3 lb)
Gear Inches
33" - 97" (2.65 - 7.72 m)

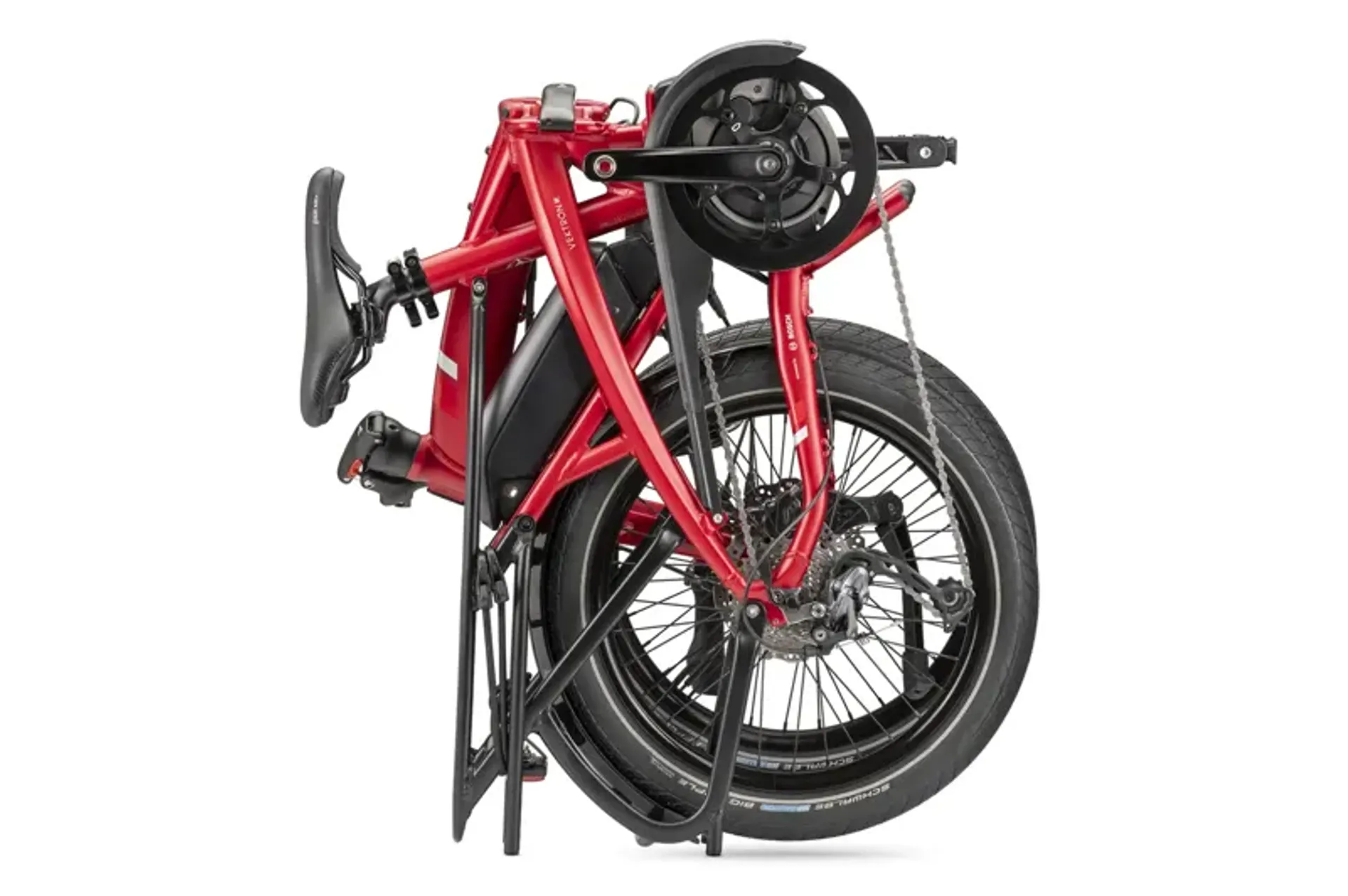

Folding Size
42 × 86 × 68.5 cm (16.5 × 33.9 × 27 in)
Folding Time
10 sec
Frame Sizes
One size
Distance: Seatpost to Handlebar
62 - 69 cm (24.4 - 27.2 in)
Distance: Saddle to Pedal
67 - 110 cm (26.4 - 43.3 in)
Suggested Rider Height
147 - 195 cm (57.9 - 76.8 in)
Max Gross Vehicle Weight
125 kg (275.6 lb)
Max Rider Weight
105 kg (231.5 lb)
Frame
Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
Fork
Tern Tarsus, 6061-Al, hydroformed
Handlepost
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Stem
Tern Andros, adjustable, forged construction, patented technology
Headset
Tern Flux, cartridge bearings, Physis integrated
Handlebar
Flat bar, 6061-AL, Tern Andros adapted
Grips/Bar Tape
Velo ergonomic, lock-on
Saddle
Tern Porter, patented GripPad design
Seatpost
Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost Clamp
Tern Collar, 6061-AL, 2pc
Front Brake
Shimano, hydraulic disk
Rear Brake
Shimano, hydraulic disk
Brake Levers
Shimano, hydraulic disk
Brake Cable & Housing
Shimano, hydraulic disk
Front Hub
Shimano disk
Rear Hub
Shimano disk
Spokes & Nipples
Stainless steel
Rims
Kinetix Comp, for disk
Tires
Schwalbe Big Apple, 55-406, puncture protection, Reflex
Shifter(s)
Shimano Alivio, 1 x 9 spd, trigger
Rear Derailleur
Shimano Alivio Shadow
Crankset
Vektron custom, forged 6061-AL crankarm
Cassette/Freewheel
Shimano 11-32T, 9 spd
Bottom Bracket
Motor integrated
Chain
9 spd, DHT for eBike, GST corrosion resistant coating
Pedals
MKS EZY
Shifter Cable & Housing
Jagwire LEX-SL, slick treatment, alloy ferrules
Motor
Class 1, Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
Battery
Bosch PowerPack 400 Wh
Display
Bosch Purion, 4 mode selectable, walk assist
Range
400 Wh: 55 -110 km (35-70 mi)
Charger
220V, 4A (EU); 100-240V, 4A (US)
Bell
Aluminum
Chainguard
SKS Chainblade
Kickstand
URSUS, rear mount
Clip System
Magnetix 3.0
Luggage Socket
Yes
Front Light
Tern Valo Direct, 190 lumens
Rear Light
Herrmans H-Trace, for eBike
Fenders
SplashGuard, stainless hardware
Rack(s)
Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
