Experience unmatched power and versatility with the Bosch® Cargo Line Motor.
Experience unmatched power and versatility with the Bosch® Cargo Line Motor.
Tern

Tern GSD S10 LX 500wh E-Cargo Bike In Blue Gray

$4,999.00
Size Guide
Tern GSD S10 LX 500wh E-Cargo Bike In School Bus Yellow Tern GSD S10 LX 500wh E-Cargo Bike In Dragon Fruit
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

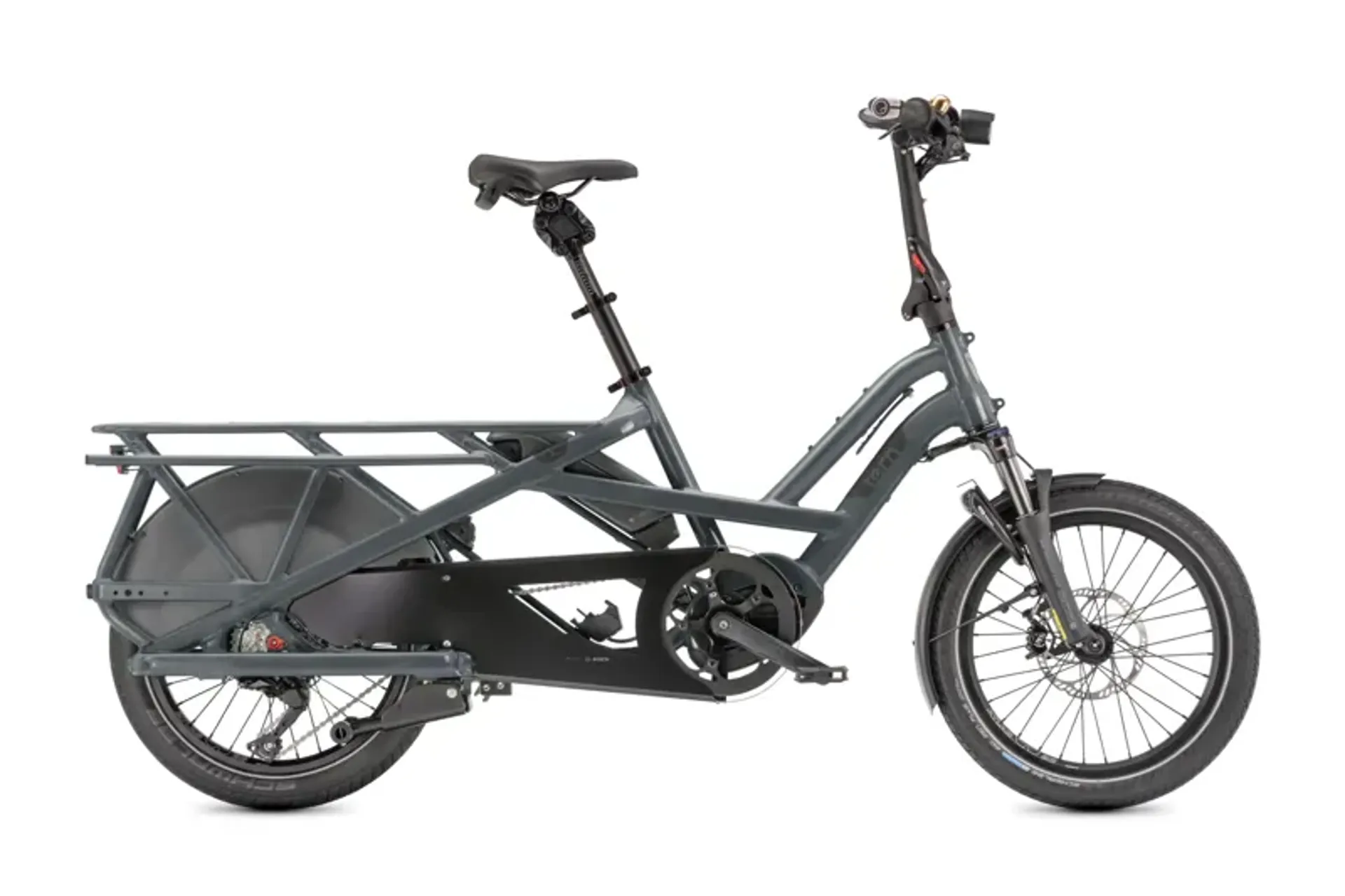

Tern GSD S10 LX 500wh E-Cargo Bike In Blue Gray

Brand:Tern

Code:12-9-44

Experience unmatched power and versatility with the Bosch® Cargo Line Motor.

The Bosch® Cargo Line Motor delivers up to 85 Nm of torque and 400% support, ensuring a powerful ride. With a Bosch dual-battery system offering a range of up to 206 km (128 mi), this vehicle is designed for long journeys. The Shimano® Deore 1 × 10-speed hub provides smooth and efficient shifting, making every ride seamless.

Designed for comfort and adaptability, the adjustable cockpit fits riders from 150 to 195 cm (4’11” to 6’5”). The super tough Atlas Lockstand™ auto-locks when engaged, and can be easily unlocked with a button on the handlebars. The heavy-duty frame-integrated rear rack and integrated lower decks offer robust support for all your cargo needs.

Safety is paramount with powerful Magura® MT5 eSTOP 4-piston hydraulic disk brakes and an always-on RearStop™ Brake Light. The integrated Abus® Wheel Lock is keyed-alike with the battery for convenience. The ultra-bright Ignis™ Headlight ensures visibility in all weather conditions.

Features:

  • 200 kg (440 lb) Maximum Gross Vehicle Weight
  • Bosch dual-battery system for extended range
  • Shimano® Deore 1 × 10-speed hub
  • Adjustable cockpit for various rider heights
  • Atlas Lockstand™ with easy handlebar unlocking
  • Heavy-duty frame-integrated rear rack
  • Magura® MT5 eSTOP hydraulic disk brakes
  • Always-on RearStop™ Brake Light
  • Integrated Abus® Wheel Lock
  • Atlas Wheels with custom CNC machined hubs
  • Cane Creek® Thudbuster ST Suspension Seatpost
  • Ultra-bright Ignis™ Headlight
  • Wide range of cargo- and passenger-carrying accessories
  • Fits two Thule® Yepp Maxi seats without adapters
Technical Information
  • Speeds
    1 x 10
  • Weight
    33.58 kg (74 lb)
  • Gear Inches
    26" - 99" (2.08 - 7.91 m)
  • Folding Size
    176 × 40.5 × 87 cm (69.3 × 15.9 × 34.3 in)
  • Folding Time
    5 sec
  • Frame Sizes
    One size
  • Distance: Seatpost to Handlebar
    49 - 59 cm (19.3 - 23.2 in)
  • Distance: Saddle to Pedal
    69 - 105 cm (27.2 - 41.3 in)
  • Suggested Rider Height
    150 - 195 cm (59.1 - 76.8 in)
  • Max Gross Vehicle Weight
    200 kg (440.9 lb)
  • Max Rider Weight
    120 kg (264.6 lb)
  • Frame
    Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
  • Fork
    Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
  • Handlepost
    Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
  • Stem
    Tern Andros, adjustable, forged construction, patented technology
  • Headset
    Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
  • Handlebar
    Tern Sweep, 6061-AL, Tern Andros adapted
  • Grips/Bar Tape
    Ergon
  • Saddle
    Tern GSD by Velo, with rear handle
  • Seatpost
    Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
  • Seatpost Clamp
    Tern Collar, 6061-AL, 2pc
  • Front Brake
    Magura MT5, 4-piston hydraulic disk, 180 mm rotor, Sport pads
  • Rear Brake
    Magura MT5, 4-piston hydraulic disk, 180 mm rotor, Sport pads
  • Brake Levers
    Magura MT5 e-stop, hydraulic, with brake sensor
  • Brake Cable & Housing
    Magura, hydraulic
  • Front Wheel
    Tern Atlas, heavy duty cargo wheel
  • Rear Wheel
    Tern Atlas, heavy duty cargo wheel
  • Front Hub
    Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
  • Rear Hub
    Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
  • Spokes & Nipples
    Stainless steel, 13G
  • Rims
    Tern Atlas, ultra wide 36 mm, dual reinforced joint
  • Tires
    F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
  • Shifter(s)
    Shimano Deore, 1 x 10 spd
  • Rear Derailleur
    Shimano Deore Shadow+
  • Crankset
    Tern GSD custom, forged 6061-AL DH crankarm
  • Cassette/Freewheel
    Shimano 11-42T, 10 spd
  • Bottom Bracket
    Motor integrated
  • Chain
    10 spd, DHT for eBike, GST corrosion resistant coating
  • Pedals
    Urban with non-slip surface, sealed bearings
  • Shifter Cable & Housing
    Jagwire LEX-SL, slick treatment, alloy ferrules
  • Motor
    Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
  • Battery
    Bosch Dual Battery system, 500 Wh/1000 Wh
  • Display
    Bosch Purion
  • Range
    500 Wh: 52-105 km (32-65 mi); 1000 Wh: 102-206 km (63-128 mi)
  • Charger
    220V, 4A (EU); 100-240V, 4A (US)
  • Bell
    Pitch Plus, brass
  • Chainguard
    Tern Custom, full chain cover
  • Kickstand
    Atlas Lockstand, w/ remote unlock, patented technology
  • Luggage Socket
    Combo Mount
  • Front Light
    Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
  • Rear Light
    RearStop Brake Light, Always on brake light
  • Fenders
    Integrated Wheel Guard, AL6061, w/ Side Skirt
  • Rack(s)
    Frame integrated, heavy duty design; Max load weight: 100 kg (220 lb)
  • Accessory
    ABUS, keyed-alike with Bosch battery
