Experience unparalleled power and versatility with this heavy-duty cargo bike.
Experience unparalleled power and versatility with this heavy-duty cargo bike.
Tern

Tern GSD S00 LX 500wh E-Cargo Bike In Rhino Gray

$5,899.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Tern GSD S00 LX 500wh E-Cargo Bike In Beetle Blue
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

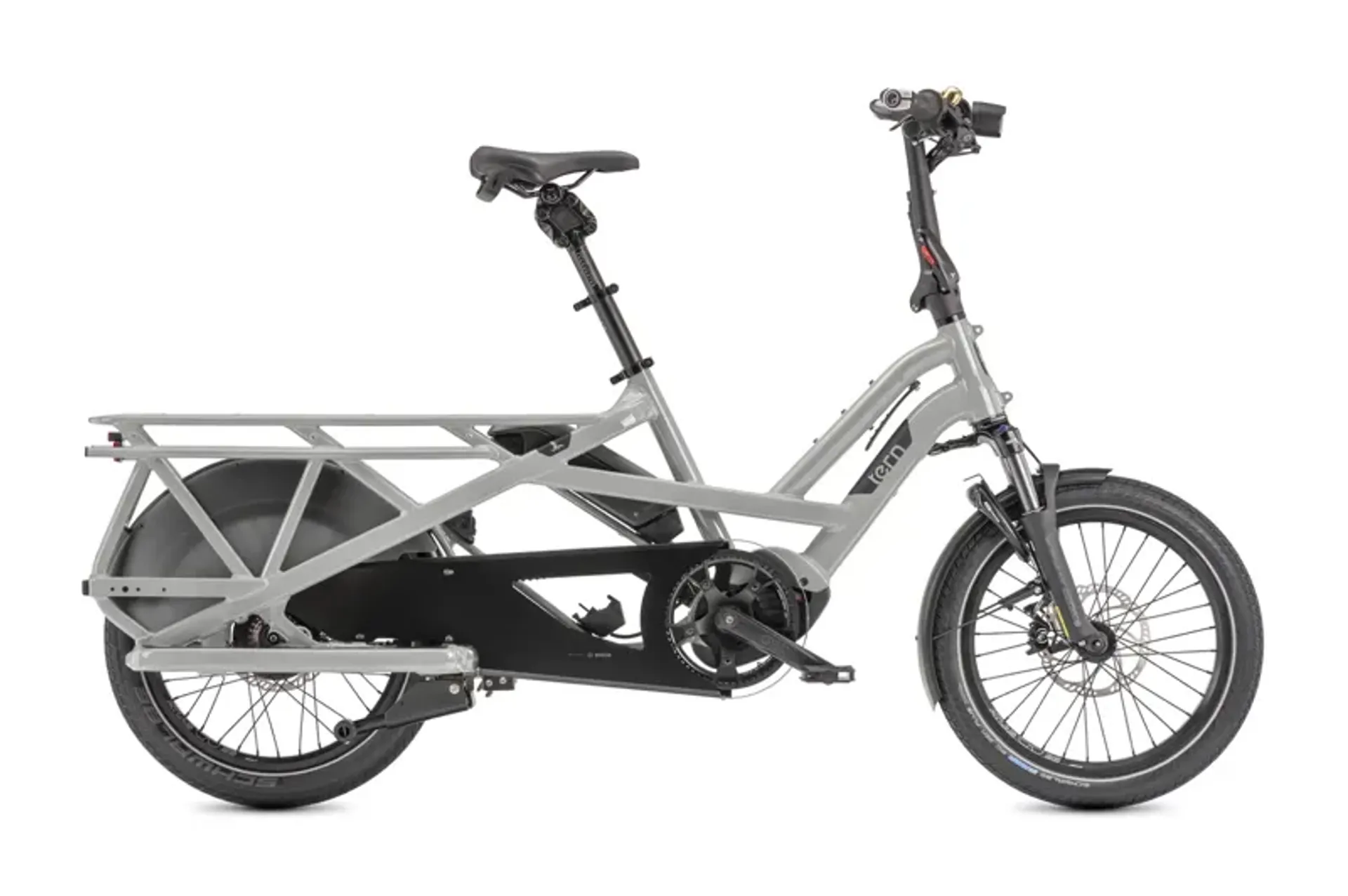

Tern GSD S00 LX 500wh E-Cargo Bike In Rhino Gray

Brand:Tern

Code:12-9-62

Experience unparalleled power and versatility with this heavy-duty cargo bike.

The Bosch® Cargo Line Motor delivers up to 85 Nm of torque and 400% support, making it ideal for transporting heavy loads. With a Bosch dual-battery system offering a range of up to 206 km (128 mi), this bike is perfect for long journeys. The heavy-duty, continuously variable Enviolo SP hub and Gates® CDX Belt Drive ensure a smooth and maintenance-free ride.

Designed for comfort and convenience, the adjustable cockpit fits riders from 150 to 195 cm (4’11” – 6’5”). The super tough Atlas Lockstand™ auto-locks when engaged, and the heavy-duty frame-integrated rear rack and integrated lower decks provide ample storage. Safety is enhanced with powerful Magura® MT5 eSTOP 4-piston hydraulic disk brakes and an always-on RearStop™ Brake Light.

Additional features include an integrated Abus® Wheel Lock, Atlas Wheels with custom CNC machined hubs, and a Cane Creek® Thudbuster ST Suspension Seatpost for a cushy ride. The ultra-bright Ignis™ Headlight ensures visibility in all weather conditions, and a wide range of cargo- and passenger-carrying accessories are available.

Features:

  • 200 kg (440 lb) Maximum Gross Vehicle Weight
  • Bosch® Cargo Line Motor with 85 Nm torque
  • Bosch dual-battery system for up to 206 km range
  • Enviolo SP hub and Gates® CDX Belt Drive
  • Adjustable cockpit for riders 150 – 195 cm
  • Atlas Lockstand™ with handlebar unlock button
  • Heavy-duty frame-integrated rear rack
  • Magura® MT5 eSTOP hydraulic disk brakes
  • Always-on RearStop™ Brake Light
  • Integrated Abus® Wheel Lock
  • Atlas Wheels with CNC machined hubs
  • Cane Creek® Thudbuster ST Suspension Seatpost
  • Ultra-bright Ignis™ Headlight
  • Fits two Thule® Yepp Maxi seats
Technical Information
  • Speeds
    Continuously variable 380%
  • Weight
    34.98 kg (77.1 lb)
  • Gear Inches
    26" - 99" (2.08 - 7.91 m)
  • Folding Size
    176 × 40.5 × 87 cm (69.3 × 15.9 × 34.3 in)
  • Folding Time
    5 sec
  • Frame Sizes
    One size
  • Distance: Seatpost to Handlebar
    49 - 59 cm (19.3 - 23.2 in)
  • Distance: Saddle to Pedal
    69 - 105 cm (27.2 - 41.3 in)
  • Suggested Rider Height
    150 - 195 cm (59.1 - 76.8 in)
  • Max Gross Vehicle Weight
    200 kg (440.9 lb)
  • Max Rider Weight
    120 kg (264.6 lb)
  • Frame
    Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
  • Fork
    Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
  • Handlepost
    Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
  • Stem
    Tern Andros, adjustable, forged construction, patented technology
  • Headset
    Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
  • Handlebar
    Tern Sweep, 6061-AL, Tern Andros adapted
  • Grips/Bar Tape
    Ergon
  • Saddle
    Tern GSD by Velo, with rear handle
  • Seatpost
    Cane Creek Thudbuster G4, Tern Telescope, 34.9/30.9 mm
  • Seatpost Clamp
    Tern Collar, 6061-AL, 2pc
  • Front Brake
    Magura MT5, 4-piston hydraulic disk, 180 mm rotor, Sport pads
  • Rear Brake
    Magura MT5, 4-piston hydraulic disk, 180 mm rotor, Sport pads
  • Brake Levers
    Magura MT5 e-stop, hydraulic, with brake sensor
  • Front Hub
    Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
  • Rear Hub
    Enviolo SP, 380% continuously variable range, Boost
  • Spokes & Nipples
    Stainless steel, 13G
  • Rims
    Tern Atlas, ultra wide 36 mm, dual reinforced joint
  • Tires
    F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
  • Shifter(s)
    Enviolo, Twist
  • Crankset
    Tern GSD custom, Gates CDX CNC machined beltring
  • Cassette/Freewheel
    Gates CDX, precision CNC machined cog
  • Bottom Bracket
    Motor integrated
  • Chain
    Gates Carbon Drive CDX belt
  • Pedals
    Urban with non-slip surface, sealed bearings
  • Shifter Cable & Housing
    Jagwire LEX-SL, slick treatment, alloy ferrules
  • Motor
    Class 1, Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
  • Battery
    Bosch Dual Battery system, 500 Wh or 1000 Wh
  • Display
    Bosch Purion, 4 mode selectable, walk assist
  • Range
    500 Wh: 50-101 km (31-63 mi); 1000 Wh: 102-206 km (63-128 mi)
  • Charger
    220V, 4A (EU); 100-240V, 4A (US)
  • Bell
    Pitch Plus, brass
  • Chainguard
    Tern Custom, full chain cover
  • Kickstand
    Atlas Lockstand, w/ remote unlock, patented technology
  • Luggage Socket
    Combo Mount
  • Front Light
    Ignis Headlight, Ultra wide 700 lumens, Hi/Lo Beam
  • Rear Light
    RearStop Brake Light, Always on brake light
  • Fenders
    Integrated Wheel Guard, AL6061, w/ Side Skirt
  • Rack(s)
    Frame integrated, heavy duty design; Max load weight: 100 kg (220 lb)
  • Accessory
    ABUS, keyed-alike with Bosch battery
